Custom Open High Speed Paper Cup Making Machine With 2000 KG Total Weight

Ask Lasest Price
Brand Name :	Mingyuan machinery
Model Number :	JBZ-OCH12
Certification :	CE
Price :	Negotiation
Payment Terms :	L/C, T/T,
Supply Ability :	30 Sets each Month
Delivery Time :	35 - 40 days

Add to Cart

Product Details
Company Profile

Custom Open High Speed Paper Cup Making Machine With 2000 KG Total Weight

Customized Paper Tea Cup Machine Output 60 - 70 Cups Per Min Eco Friendly

Quick Details

Type	Open cam Paper Cup Machine
Applications	Fast Forming Paper Coffee Cup, Juice Cup, Ice Cream Cup
Raw Material	PE Coated Paper, Cardboard Paper
Paper Cup Size	3oz-12oz (mold exchangeable), Bigger Cup size need custom Produce Machine
Production Capacity	60 to 65 Pcs / Min
Packaging detail	Plywood case is the usual exporting packing , also can packing according to the customer's requirements
Delivery Time	35days after got Your down payment
after-sales service: Free training, Engineers available to service machinery overseas

Description

This open cam paper cup machine is a multi station automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking.

Theopen cam paper cup machine full-automatic failure warning, counting, detection, stopping, etc.

Features

1, Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.

2, The open cam paper cup machines with quality guarantee for one year, life-long maintenance.

3, A lot of open cam paper cup machines can be monitored via Internet, solve customer requirements immediately.

4, Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.

5, Undertake various non-standard machinery, solve the customers' special requirements.

Specification

Paper request	140-300 (single & double PE paper)
Voltage supply	220V~380V, 50Hz or customized
Cup size	3~12oz
Speed	60~65pcs/min
Paper cup top diameter	Min 45mm-Max 104mm
Paper cup bottom diameter	Min 35mm-Max 75mm
Paper cup height	Min 35mm-Max 115mm
Total power	3.3 kw
Weight	2000kgs
Overall dimensions (LWH)	2600x1200x1850mm
Main parts brand	PLC: Mitsubishi Touch Screen: Siemens or other Ultrasonic: Evergreen (Taiwan)

Production process

1 Paper roll be printed and cut in advance , becomes cup-fan-wall-papers to make cup body

2 Paper sender delivers the cup-fan-wall-papers to molds , sealing the body

3 The cup bottom paper automatically feed to the bottom cut parts,be cut into round pieces and sent to molds with the sealed cup body

4 Pre-heating the cup bottom , bottom heating ,Sealing the bottom with body ,

5 Knurling the cup bottom

6 Curling the top edge

7 Discharging finished cups automatically from molds.Sending to collection and be collected piled and counted automatically

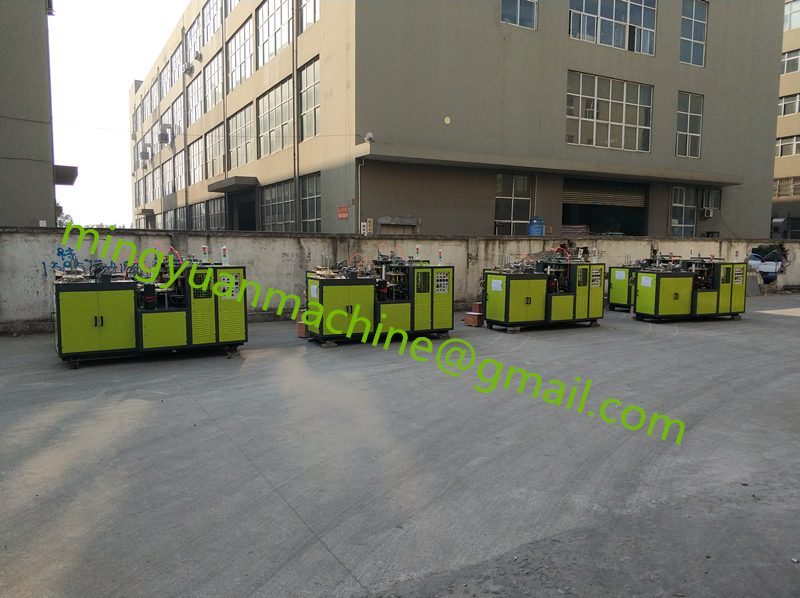

Loading Paper Cup Machine
