Professional Paper Plate Making Machine 150 Mm Air Cylinder Stroke With High Speed

Ask Lasest Price
Brand Name :	Mingyuan
Model Number :	ZDJ-400K
Certification :	CE, SGS
Price :	Negotiate
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	150 sets each Year
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

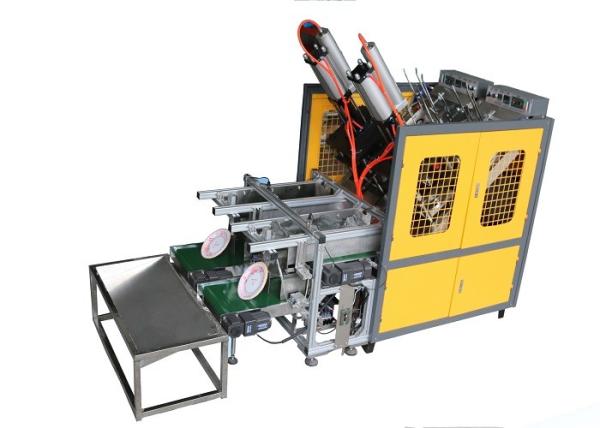

Professional Paper Plate Making Machine 150 Mm Air Cylinder Stroke With High Speed

Two Working Stations Paper Plate Machine With High Speed

Quick Details

Paper Plate Size: 3-11 inch (mould exchangable), Bigger or specially available
Productivity: 70-100 Pcs/min
Warranty: 1 years
Usage: Round Plate or other plate( follow client need)
after-sales service: Engineers available to service machinery overseas

Description

ZDJ-400K High Speed Paper Plate Forming Machine is developed and designed as the requirement of market. It is Pneumatic Type automatic paper plate forming machine with owned unique intellectual property right, which has functions as automatic paper feeding, forming, dish ejecting, temperature constant controlling, automatic counting, fast working speed, safe operation and easy maintenance, etc.

This machine have two working station, two molds installed in the machine, you can produce two sizes paper plates in the same time or let the two molds the same to get double speed. Air compressor is demanded in this machine to offer the air pressure.

Technical Specification:
Model	ZDJ-400K paper plate machine
Paper Plate Size	3-11 inch (mold exchangeable)
Raw Material	Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other;
Suitable Paper Weight	180-500g/m2 Paper/paperboard, aluminum foil coated paper, one side PE coated paper or other
Rated Productivity	70-100 piece/minute (total two stations,so two moulds is included)
Power Source	220V/380V 50Hz or other required
Total Power	2 KW
Total Weight	500KG
Package Size(L x W x H)	1480×1150×2050 mm
Working Air Source	Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air comprssor);
Pressurizing Air Cylinder Technical Specification	Air flow vlume	0.8 cubic/min
	Air pressure	0.6-0.8Mpa
	Air cylinder stroke	150mm

After service

1 The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.

2. Test run of the machine & training:

We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.

Advantage:

1. Quenching treatment for all the machinery,so its hardness is much more better than others by 20%.

2. Divided box: 125’ type, it has the long life than 100’

3. Base board is nearly double than others,guarantee the machinery working stable ,longer using.

4. Our equipment of the heating use aluminum,it has better thermal conductivity.

5. Double Belt and Three Tier Chain make machine running stable, long strong use life.

Advantage

Mold Installment	The machine is with two free molds installed
Air Cylinder	Our machine use much more stroner air cylinder than others, which makes the plate pressing more exactly(we use Taiwan cylinder)
Paper Clamping Manipulator	The paper plate machine is using the automatic paper clamping manipulater system, which save a lot of time and labor costs
Free Spare Parts	one year guarantee,will give spare parts with machine while packing (enough for 2 years using) with one year,all parts given for free, after that we need charges and delivery cost
