Strong Frame Hamburger Paper Lunch Box Machine High Precision 120 - 180 Pcs / Min

Quick Details

Description

New-generation three-dimensional paper lunch box making machine is molding equipment specialized in producing various paper products.

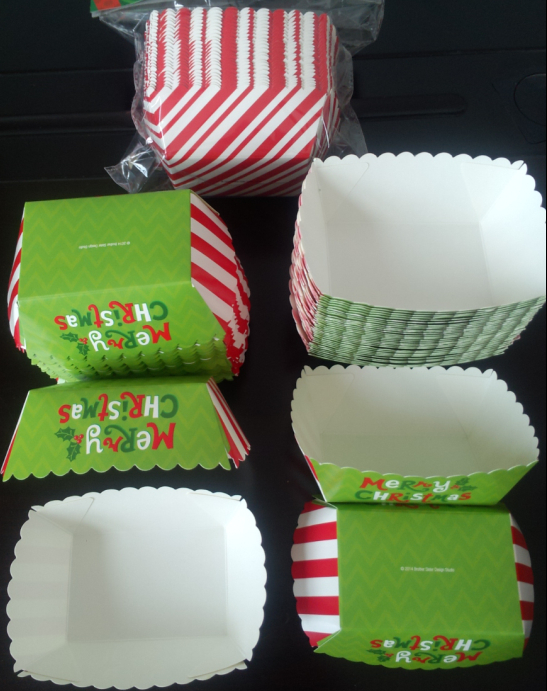

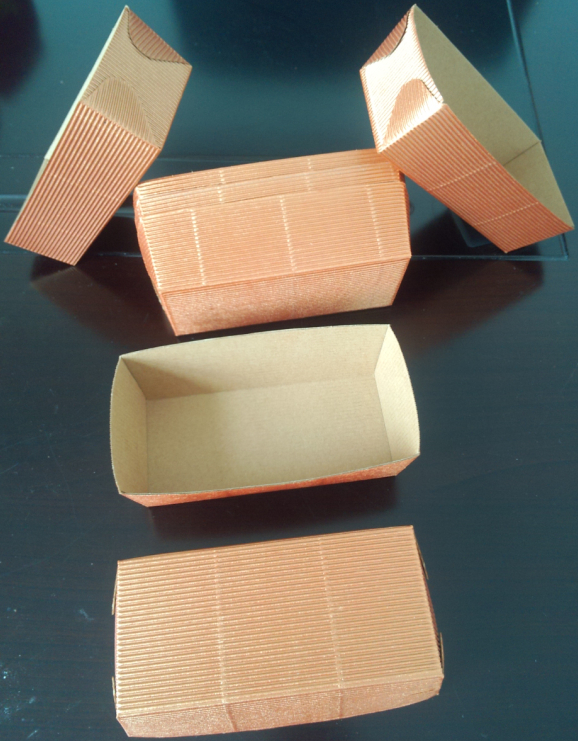

Carton erecting machine can produce hamburger box,square box,potato chipper boxes,food boxes(portable outside)
And other boxes made by paperboard and corrugaed paper.

Working Principle of Automatic Paper Gluing Machine For Box, High Speed Carton box gluing machine

The out-feeder deliver the printed and cut cardboard pieces to the conveyor chain from the paper holder, and then to the forming mold. In this process, the cardboard pieces are glued with Water-based glue Or hot melt glue. The position and volume of the glue is adjustable, without stopping the machine.

The cardboard pieces are delivered to the collector after being glued. Automatically piling and counting, and automatically marking according to the predetermined amount of stacking.

Specification

Model: Burger Box Making Machine
Productivity: Max 160 pcs /min
Sealing Method: Glue Sealing
Material: 200-600 g/m² Cardboard
Paper Thickness: Max 1.5 mm
Electricity Required: 3 KW / H
Servo motor: 0.75KW
General motors: 2.2KW
Air Required: 6kg/cm²*200 L/min
Total Weight: 2000KGS
Machine Dimension: 4000*1500*2200 mm
Paper Box size: 60*100 – 320*320 MM

Note: the output quantity metioned above is under normal conditions .Actual output may very on different box shape , quality of material , and its substance.

FEATURE:

1. High speed: max speed is up to 160PCS/min.

2. Multinational:can make Lunch Box, Hamburger box,Ship type box.

cake box etc with various specifications by changing the moulds.

3. This machine adopts Water-based adhesive device, High efficiency.

Water-based glue is water soluble adhesive glue for food grade use, safe.

4. This machine mostly uses high quality sealed bearings, long life, good stability.

5. The machine uses PLC intelligent control system,

automatically shut down when there is paper jam and no paper.

6. Master mold using pine material, replace the mold with high efficiency.

7. Using high quality belt drive, the machine is running with almost no error.

Applications

          MINGYUAN was established in 2009, is a professional design, development and production of paper cup machine, paper straw machine, paper hamburger box forming machine, paper tray machine, plastic lid machine, paper cake tray machine all kinds of containers and packaging complete set of equipment.

         We are located in "China Packaging Machinery City"--Rui'an City, and all our products meet international quality standards and have obtained CE certificates. Our well-equipped facilities and excellent quality control throughout all stages of production allow us to guarantee complete customer satisfaction.

         Ruian Mingyuan Machinery Co., Ltd. was established in 2009. It is a company that integrates machinery development, production, sales and service for packaging equipment and complete sets of paper containers.

     In order to meet customers' export services from raw materials to finished products, we founded Ruian Mingyuan Paper Products Factory in 2014 and Wenzhou Mingyuan Import & Export Co., Ltd in 2022. We are mainly engaged in the supply of raw materials and finished paper products, foreign trade import and export business.

     Adhering to the corporate tenet of "quality, service and price", the company currently has more than 10 product lines, with products exported to 67 countries. High-efficiency production of high-quality finished products help customers to win the competition of market.

    Refine the performance of the equipment according to customer needs and provide more complete and timely after-sales ervice. Bringing more professional and high performance machines and equipment to customers.

    With the concept of "altruism", we aim to build a "different" company with a "human touch", which will ultimately lead to the common prosperity of our employees and customers.
