Universal Aluminium Foil Cake Tray Making Machine , Cake Box Making Machine

Quick Details:

Description:

Model JDGT Full Automatic Paper Cake Tray Forming Machine is a self-innovation equipment after assimilating the technology from Italy, it’s a first-class equipment at home and oversea with the advantages of simple structure, easy operation, fast production efficiency and reliable performance.

It produces paper cake tray after running the procedure of auto separate paper, pneumatic-controlled mechanical-hand clip paper, transfer to the mold, press paper to the mold and form shape with heater around the molds to produce different size paper tray and aluminum foil tray (around tray ,oval tray ,etc).

Specification:

HS. Code: 8441309000
Raw Paper Size : Φ50--Φ120 mm (open paper) (mold exchangeable);
Raw Material : Anti-oil paper(Greaseproof paper), aluminium foil paper or other;
Suitable paper weight : 15gsm--80 gsm;
Rated Productivity : 20--40 beat/minute, 15--35 pcs/beat;
Total Power : 2.5 KW (motor1.5kw, heating 1kw);
Power Source : 220V 50Hz or other required;
Total Weight : 500 Kg;
Package Size (L x W x H) : 1580 x 1480 x 1800 mm;
Working Air Source : Air Pressure: 0.6Mpa, Air Out-put : 0.3 m3/minute
Need to buy An air compressor.

Features of cake tray making machine:

1, Characterized in high accuracy, stable functioning, proper structure, energy saving and quiet.

2, Full-auto operations in all sections, e. G., in separating paper, delivering paper and shaping sections.

3, Auto control of heating, auto counting. On the main unit, speed is regulated by converting frequencies, which is quick and convenient.

4, Delivery velocity: 1200pcs/min

5, Produce round, boat-shaped and rectangle (with round corners) cake paper cups, where the diameter of the round spread is 50-140mm.

6, The power of the main unit is smaller than 1.5kW. The heating power is smaller than 0.8kW. The air pressure is 0.4-0.6mPa.

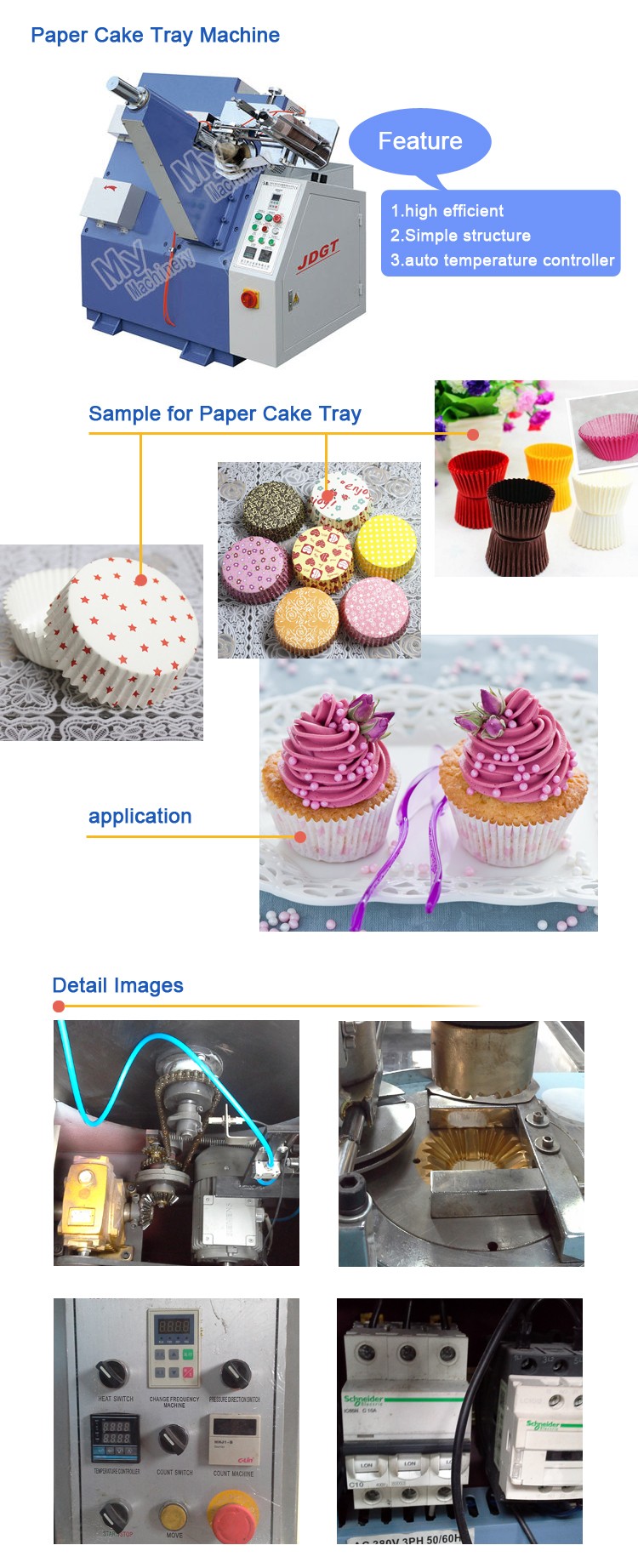

Detail of Paper Cake Tray Machine:

          MINGYUAN was established in 2009, is a professional design, development and production of paper cup machine, paper straw machine, paper hamburger box forming machine, paper tray machine, plastic lid machine, paper cake tray machine all kinds of containers and packaging complete set of equipment.

         We are located in "China Packaging Machinery City"--Rui'an City, and all our products meet international quality standards and have obtained CE certificates. Our well-equipped facilities and excellent quality control throughout all stages of production allow us to guarantee complete customer satisfaction.

         Ruian Mingyuan Machinery Co., Ltd. was established in 2009. It is a company that integrates machinery development, production, sales and service for packaging equipment and complete sets of paper containers.

     In order to meet customers' export services from raw materials to finished products, we founded Ruian Mingyuan Paper Products Factory in 2014 and Wenzhou Mingyuan Import & Export Co., Ltd in 2022. We are mainly engaged in the supply of raw materials and finished paper products, foreign trade import and export business.

     Adhering to the corporate tenet of "quality, service and price", the company currently has more than 10 product lines, with products exported to 67 countries. High-efficiency production of high-quality finished products help customers to win the competition of market.

    Refine the performance of the equipment according to customer needs and provide more complete and timely after-sales ervice. Bringing more professional and high performance machines and equipment to customers.

    With the concept of "altruism", we aim to build a "different" company with a "human touch", which will ultimately lead to the common prosperity of our employees and customers.

Office Of Mingyuan Machinery

Employee of Mingyuan Machinery

Factory Building of Mingyuan Machinery

Workshop of Mingyuan Machinery

Machine Ready for Loading
