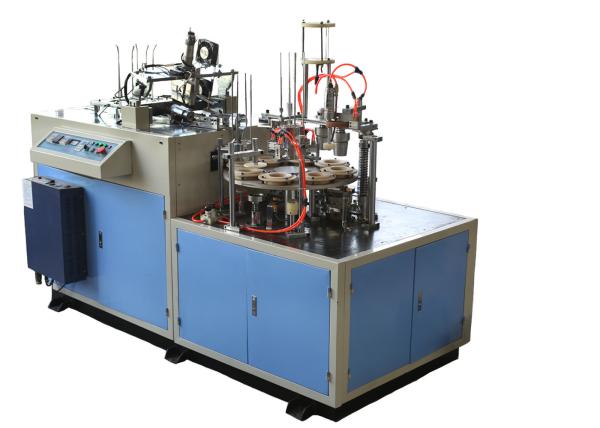

Double Layer Paper Cup Sleeve Machine For Hot Coffee / Ice Cream Paper Cups

Ask Lasest Price
Brand Name :	Mingyuan
Model Number :	JBW-D
Certification :	CE
Price :	Negotiate
Payment Terms :	L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :	30 sets each Month
Delivery Time :	25 days after receive client advance payment or LC

Add to Cart

Product Details
Company Profile

Double Layer Paper Cup Sleeve Machine For Hot Coffee / Ice Cream Paper Cups

Double Layer Paper Cup Sleeve Machine For Hot Coffee / Ice Cream Paper Cups

Quick Details:

Type	Double Wall Paper Cup Sleeve Machine
Applications	Coffee Paper Cup
Raw Material	PE Coated Paper Or Varnishing Printed paper
Certificate	CE
After service	Engineers available to service machinery overseas
Packaging detail	Plywood case is the usual exporting packing , also can packing according to the customer's requirements
Delivery Time	30 days after got Your down payment

Description:

It is an automatic equipment to make a second wall sleeve over the inner cup/bowl (cup/bowl finished by paper cup / bowl machine), wear a sleeve around the paper cup/bowl. It has the function as photocell detection, failure alarm, counting etc.,makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan sleeve) feeding, sleeve cone body sealing (by ultrasonic wave), water glue spraying (spray glue inside the cone sleeve), cup / bowl feeding (absorb cup into the cone sleeve), inserting and bonding sleeve to the cup, collecting with the function of photo electric detection, fault alarm, and count.

It is an ideal equipmentof making two/double wallspaper cups/bowls such as direct sleeve cups, hollow sleeve cups, rippled or corrugated-sleeve paper cup, setc. The sleeve wrapped paper cups are popular for hot drinks(tea, coffee, etc ).

Specification:

Model		JBW-D Double Wall Paper Cup Sleeve Machine
Paper Cup Size		5oz~16oz cup; 20oz~50oz bowl (mold exchangeable)
Raw Material		PE coated paper, Gloss printed paper (gray based paper with gloss printing), other film coated paper (can be welded by ultrasonic)
Suitable Paper Weight		170-450gsm (Recommend 250-300 gsm)
Rated Productivity		40-50 pcs/min
Total Power		4 KW
Power Source		50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement.
N.W		1000Kg
G.W		1100Kg
*Package Size(L W * H)**		2500 x 1250 x 2000 mm
Sleeve Side Welding		Ultrasonic
Working Air Source	Air pressure:0.3Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor

Loading Machine:
