    Long Lasting Universal Paper Cup Sleeve Machine With Photocell Detection

    Ask Lasest Price
    Brand Name : Mingyuan
    Model Number : JBW-D
    Certification : CE
    Price : Negotiate
    Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets each Month
    Delivery Time : 25 days after receive client advance payment or LC
    • Product Details
    • Company Profile

    Long Lasting Universal Paper Cup Sleeve Machine With Photocell Detection

    Long Lasting Universal Paper Cup Sleeve Machine With Photocell Detection


    Quick Details:


    TypeDouble Wall Paper Cup Sleeve Machine
    ApplicationsCoffee Paper Cup
    Raw MaterialPE Coated Paper Or Varnishing Printed paper
    CertificateCE
    After serviceEngineers available to service machinery overseas
    Packaging detailPlywood case is the usual exporting packing , also can packing according to the customer's requirements
    Delivery Time30 days after got Your down payment

    Description:

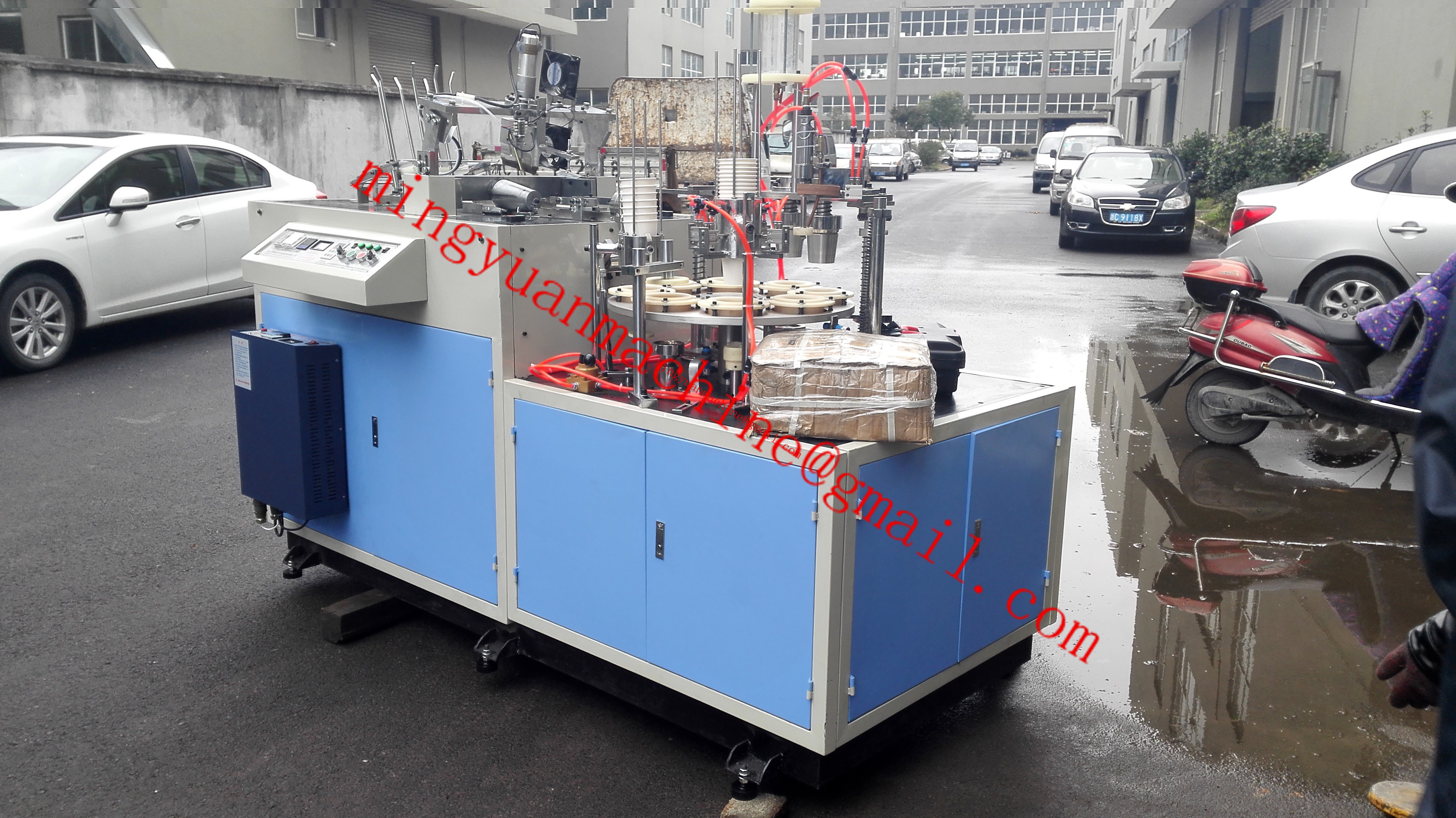

    It is an automatic equipment to make a second wall sleeve over the inner cup/bowl (cup/bowl finished by paper cup / bowl machine), wear a sleeve around the paper cup/bowl. It has the function as photocell detection, failure alarm, counting etc.,makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan sleeve) feeding, sleeve cone body sealing (by ultrasonic wave), water glue spraying (spray glue inside the cone sleeve), cup / bowl feeding (absorb cup into the cone sleeve), inserting and bonding sleeve to the cup, collecting with the function of photo electric detection, fault alarm, and count.


    It is an ideal equipmentof making two/double wallspaper cups/bowls such as direct sleeve cups, hollow sleeve cups, rippled or corrugated-sleeve paper cup, setc. The sleeve wrapped paper cups are popular for hot drinks(tea, coffee, etc ).


    Specification:


    Model: JBW-D Double Wall Paper Cup Sleeve Machine

    Paper Cup Size: 5oz~16oz cup; 20oz~50oz bowl (mold exchangeable)

    Raw Material: PE coated paper, Gloss printed paper (gray based paper with gloss printing),

    other film coated paper (can be welded by ultrasonic)

    Suitable Paper Weight: 170-450gsm (Recommend 250-300 gsm)

    Rated Productivity: 40-50 pcs/min

    Total Power: 4 KW

    Power Source: 50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement.

    N.W: 1000Kg

    G.W: 1100Kg

    Package Size(L * W * H): 2500 x 1250 x 2000 mm

    Sleeve Side Welding: Ultrasonic

    Working Air Source: Air pressure:0.3Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor


    Loading Machine:
