High Performance Plastic Cap Making Machine , Plastic Covers
Manufacturing Machine
Quick Details:
Type: Plastic Lid Thermoforming Machine
Applications: Plastic Cup , Paper Cup
Packaging Material: PVC, PS. PET
Certificate: CE
After service: Engineers available to service machinery overseas
Packaging detail: Plywood case is the usual exporting packing , also can packing
according to the customer's requirements
Delivery Time: 30 days after got Your down payment
Description:
DPP-450W Type Plastic Lid Theromoforming Machine is newest advance
model Plastic lid machine, That is New model Plastic lid machine
with PLC control, Encoder Adjust, Servo Motor traction Raw Material
etc. Also This type Machine with Big forming Area which for
increase machine running capacity.
Save Waste Raw Material, Save Adjust time, Running stable and
safety. Our New model Plastic Lid Machine very Popular in the
Market Now.
Specification:
| items | DPP-450W Plastic Lid Thermoforming Machine |
| Punch speed | 15-45 punch/min |
| Max. Forming size | 430*280mm |
| Max. Forming depth | 50mm |
| Max. Material width | 450mm |
| Stroke Range | 100-280mm |
| Compressed air | 0.4-0.7Mpa |
| Mold cooling | 60L/H tap water /recycle water |
| Total power | 8.2Kw |
| Main motor power | 2.2Kw |
| Material thickness | 0.15-1 mm |
| Overall dimension | 2900*1000*1800MM |
| Packing Size | 3100*1100*1900MM |
| Weight | 1200 KG |
| Voltage | 380V/220V 50HZ |
Competitive Advantage:
1. The machine is designed and manufactured by the standard of
“GMP” in medical industry and “QS” in food industry.
2. This machine can do forming, punching and blanking at the same
time to avoid the cross-contamination of product.
3. The forming heating plate can open and close automatically, also
can delay to start, so as to control and lower the waste of the
material during the production.
4. Easy to replace the mould, application to different
specifications of products.
5. Design the mould according to customer’s requirements.
6. Applicable projects: the material of HIPS, PVC, PET, PS.
FAQ
1. Are you trading company or manufacturer?
we are one of the leading manufacturer of the paper cup machine die
cutting machine, cup lid machine, paper plate machine etc paper
product machinery and paper cup, paper plate etc paper product in
China.
2. Do you have quality certificate?
we have got the ce, sgs, certificate for our product and factory.
3. What's the delivery time?
Around 30~40 days, however, based on order.
4. where is your factory location?
we are locate in Henghe industrial zone, feiyun street, ruian city,
zhejiang province, china. our nearest high way exit is feiyun, our
nearest train station is ruian station, our nearest airport is
wenzhou airport.
5. How does your factory do regarding quality control?
A: Quality is priority. Our Factory always attach great importance
to quality controlling from the very beginning to the very end:
1). All raw material we used are environmental-friendly;
2). Skillful workers care every details in handling the producing
and packing processes;
3). Quality Control Department specially responsible for quality
checking in each process.

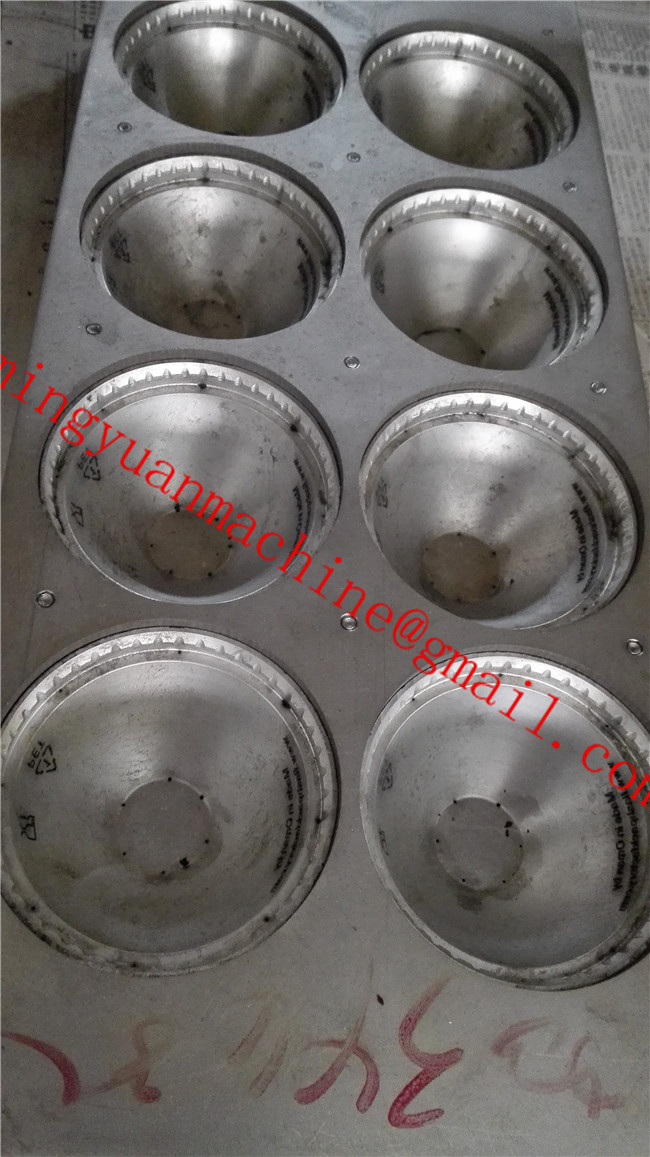

Mould of Plastic Lid Machine:
Loading Machine
