Type: High Speed Paper Cup Machine

Applications: Fast Forming Paper Coffee Cup, Juice Cup, Ice Cream Cup

Raw Material: PE Coated Paper, Cardboard Paper

Paper cup size: 3oz-12oz (mold exchangeable), Bigger Cup size need custom Produce Machine

Production Capacity: 60 to 75 Pcs / Min

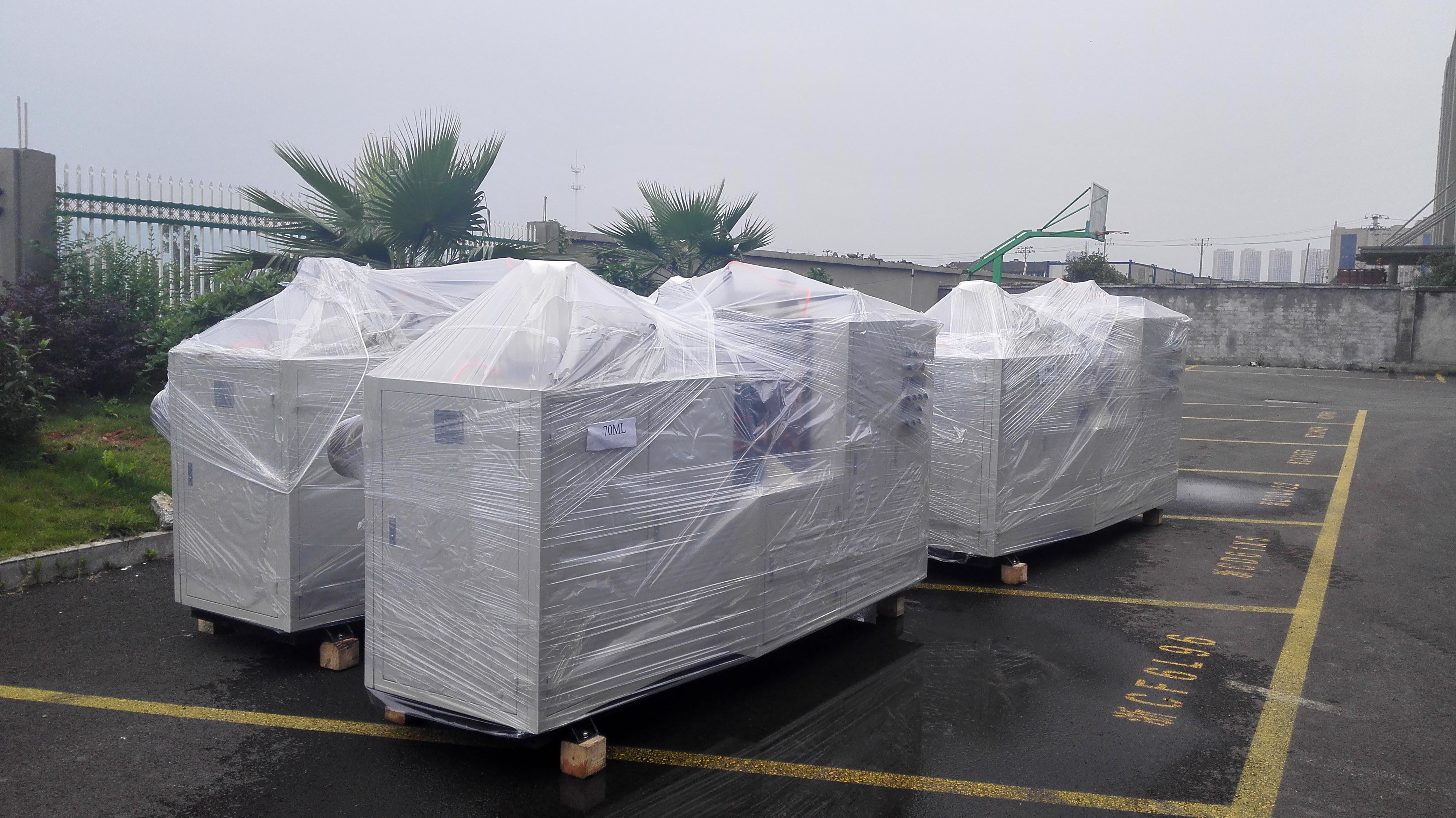

Packaging detail: Plywood case is the usual exporting packing , also can packing according to the customer's requirements

Delivery Time: 35days after got Your down payment

after-sales service: Free training, Engineers available to service machinery overseas

Description

Our newly designed JBZ-X12 paper cup forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.

Features

1, different from ordinary paper cup machine, this whole body uses the fine steel structure, in the case of high-speed operation is more compact, solid.

2, intelligent design, PLC automatic control, servo motor drive, automatic processing fault alarm, counting, stop such action. A. the main motor adopts Taiwan geared motor B. the bottom into the paper adopts the servo motor feeding method C. easy material control panel

3, the automatic lubrication system, closed, without artificial gas, can ensure the machine long time continuous high-speed operation.

4, spare parts are all made of standardized production, strong commonality, swap performance is good, easy to maintenance. The equipment is high yield, low consumption is the production of beverage cups, tea cups, coffee cups, paper cups, ice cream cups. or other advertising paper cups and market of disposable paper food containers ideal equipment.

Specification

Features

Paper Cup Shaper is the automatic machine with multi-running positions. The production of paper cups and other containers completes after this machine runs a whole procedure of paper-feeding, gluing, oiling, bottom-punching heating, rolling, rimming, rounding and tripping.

Produce coffee cups , ice cream cups and other drink cups.

Workshop
