Industrial Paper Drinking Straw Machine , Paper Straw Forming
Equipment CE Certificate
Feature :
1. It is adopted with PLC controller; main motor is equipped with
variable frequency speed regulation; touch screen man-machine
interface. Easy for parameters setting & operating.
2. T Bar Paper Roll Bracket , paper rolls are easily placed into
bracket
3.Stainless steel gluing box, with polyurethane scraper and high
carbon steel plastic knife, durable in use can choose Single or
double glue coating unit
4. Spiral winding unit , specialized operation system , Belt
tension device (hand-wheel driven)
| Technical Parameter | Control System |
| Paper Layer | 3 layer (in side two layer the paper use 120gsm paper, outside
layer paper use 60gsm) | Motor | 3.0KW |
| Inner Diameter | 4-12mm | PLC | Panasonic Made By Japan |
| Wall Thickness | 0.5-1mm | Operating Panel | Weinview Made by Taiwan |
| Winding Speed | 40-55 meters/min | Inverter | 3.7kw |
| Winding Nose | Two noses single belt | Execute Components | CHNT |
| Speed Control | By Inverter | Pneumatic Components | AirTAC Made by Taiwan |
| Cutting System | Numerical Multi-blades (standard 5 pcs) | Electric Components | Schneider Made by France |
| Synchronism tracking cutting system | Servo motor synchronism tracking | Bearing | Haerbin |
| Gluing Way | Single/Double sides | Screw Rod | ABBA from Taiwan |
| Operator | 1-2 person | Slider | ABBA from Taiwan |
| | | |
| Working Air Pressure | 0.6Mpa | Configuration |
Power Supply
380V or 220V /3Phase or 1 Phase /50Hz | Paper Reel Stand | 3 Layers Cross Type |
| Gluing Unit | 3 Layers Spraying Type |
| Measurement & Weight | Belt | 2 Pieces |
| Measurement | 5600*1600*1750mm | Mandrel Shaft | 2 Pieces |
| Operation space | About 7000*5000mm | Extra blades | 5 Pieces |
| Weight | 1000kgs | Useful Tool | 1 Set |
| Specifications |
| Application Material |
| Kraft Paper |
| Main |
| Ø It adopts Panasonic PLC and meter counter, all the working parameters can be setup on the control panel. Panasonic PLC control system, a mainframe operating |
| Ø It adopts Weinview Touch Screen from Taiwan, all the parameters can be displayed on the control panel, and
easy operation. |
| Ø It adopts imported frequency inverter to control the AC motor, the machine working is more stable |
| Ø It adopts separate electrical control box, and it is with input
plug terminal, the sale after service and repair shall be more
easier |
| Ø Text Display operation, all of the features automatic memory,
automatic preservation, automatic fault display. |
| Ø It adopts dialogue monitor, it is with function of automatic
store, trouble display, working position |
| Ø It adopts imported Multi cutters to cut the paper core, it is
high precision, and more bearable no longer incision more precision
without wasting. |
| Ø The transmission parts with extreme quiet design,adopt special
treatment, it is high efficiency and low maintenance. |
| Ø It adopts Sensor for the paper straw length tracking, after get
to the setup length, the paper core shall be cut off. |
| Ø Circuit System with Remote Control function, users can travel in
the office or in the field can be a computer monitor in the
operation of plant equipment. If the circuit and system failure and
other reasons, and in our communications tools and software
control, plant technical personnel can be created to implement and
maintain operational function |
Below Simple answer for Client question:
1, what type of material is used to make paper straw?
white kraft paper with Food grade: 120 GSM and 68 GSM ( pls buy it
as 2:1 which means if buy 2 rolls 120GSM then 68 GSM buy 1 roll)
Paper Roll Bracket :The paper rolls can be easily installed in it and rotate flexibly.
2, What type of glue is used to make the paper straw? It need to be
FDA approved? We want to know technical spec of the glue we need
and some quantity to produce here in my factory.
Name: WATER BASED ADHESIVE
Must is by FDA approved ( Food Grade)
Content Of Non Volatile Matter: ≥46-50%
Viscosity: 2950~3100
Ph: round 5.2
Remnants VAC: ≤0.09%
Particle Diameter: 0.9um
Dilution Stability: ≤3.4%
Minimum Film Forming Temperature: ≤0.9℃
Price: round 2200usd each ton
Different type glue price also will a little different.
New Mingyuan Machinery Design High Speed Paper Straw Machine Function Brief:
1. Stainless Steel Glue Unit
Choose gluing single side or double sides. The drinking straws are
glued evenly and stuck firmly. ( Glue by WATER BASED ADHESIVE which
FDA approved Food Grade)
2. Spiral winding unit , specialized operation system, Belt tension
device (hand-wheel drive).
a. Send the paper to the winding unit .
b.Wind the paper shape to straw by winding system
3. Silicone oil lubrication system
Add silicone oil on the paper which for paper running smooth
4. Multi-blades cutting system and spiral rolling mechanism
multi-blades cutting system is controlled by encoder. Servo
synchronous tracking cutting system makes it higher precision and
multi-blades cutting makes it higher efficiency.
5. Using PLC control and touch screen
With PLC control and touch screen, working data can be preset on
the control panel and it is easy for operation.
6.Using servo motor control system which can track the cutting length
with high precision and high efficiency.
7. Paper straw collecting system : collect the straws automatically
and row them tidily in the container (By Client choose).

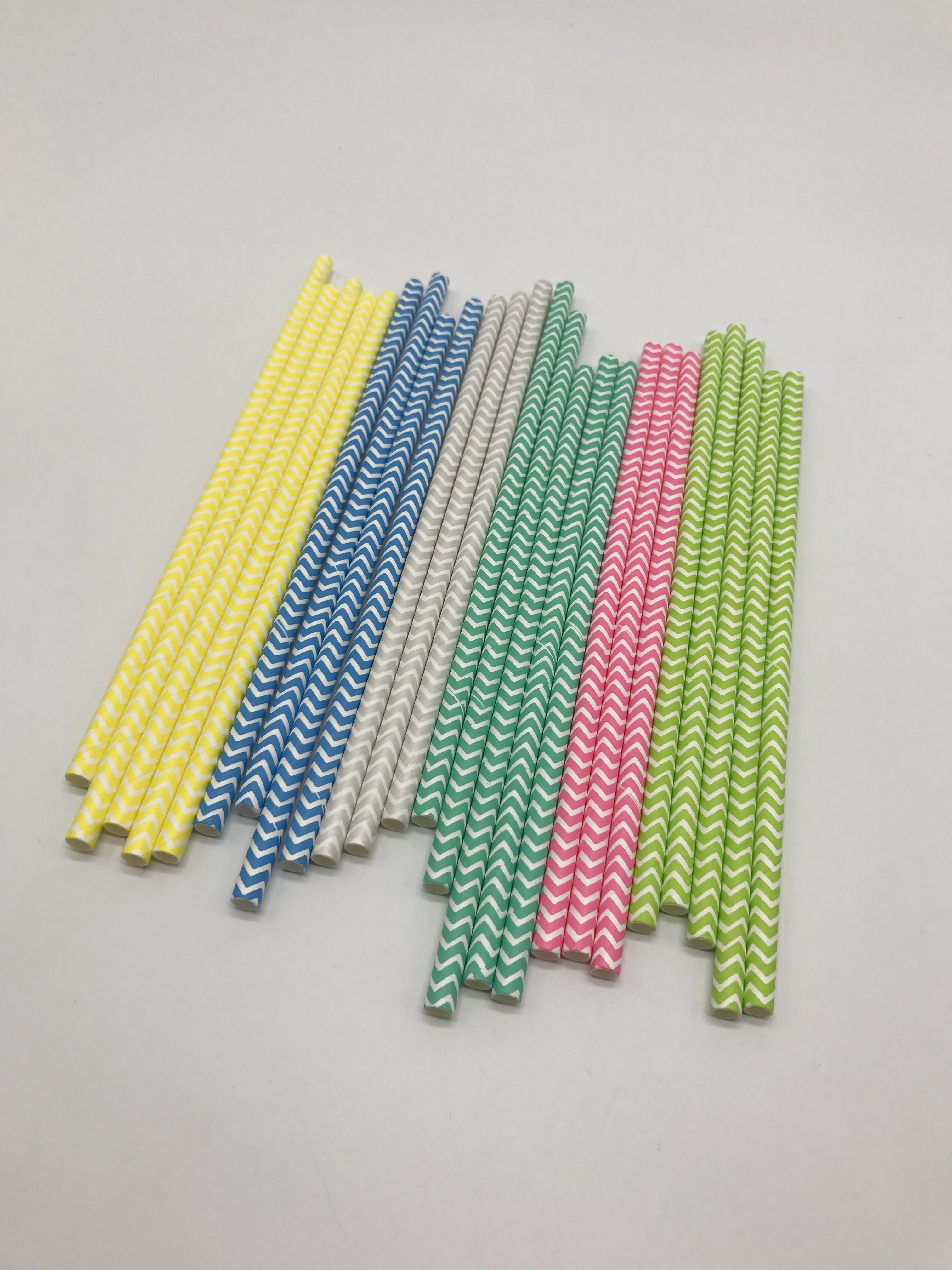

Application
