L Sealing Automatic Shrink Wrap Machine / Shrink Wrapping Machinery 150 Mm

    Buy cheap L Sealing Automatic Shrink Wrap Machine / Shrink Wrapping Machinery 150 Mm from wholesalers

    Buy cheap L Sealing Automatic Shrink Wrap Machine / Shrink Wrapping Machinery 150 Mm from wholesalers
    • Buy cheap L Sealing Automatic Shrink Wrap Machine / Shrink Wrapping Machinery 150 Mm from wholesalers

    L Sealing Automatic Shrink Wrap Machine / Shrink Wrapping Machinery 150 Mm

    Ask Lasest Price
    Brand Name : Mingyuan
    Model Number : MY-500
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T, MoneyGram, Western Union
    Supply Ability : 25 Sets Each Month
    Delivery Time : 15 days after received client deposit or Open LC
    • Product Details
    • Company Profile

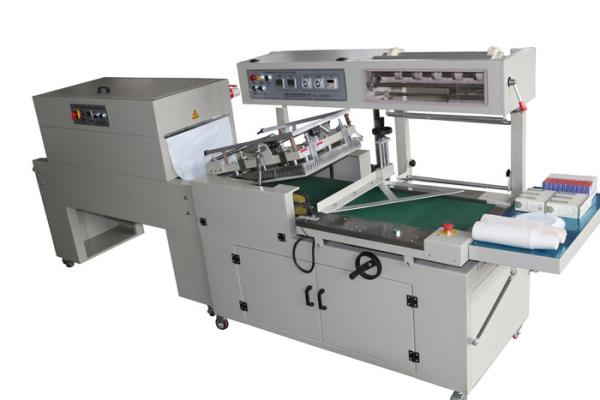

    L Sealing Automatic Shrink Wrap Machine / Shrink Wrapping Machinery 150 Mm

    L Sealing Automatic Shrink Wrap Machine / Shrink Wrapping Machinery 150 Mm


    Automatic Shrink Wrap Machine Technical Specification:


    Technical DataL Sealing Automatic Shrink Wrap Machine / Shrink Wrapping Machinery 150 Mm
    Sealing typeL-sealing
    Power supply380V/50-60Hz/3phase
    Packing capacity15 - 35 packs/min
    L-bar sealing size570x480 mm
    Sealing height150 mm
    Product sizewidth + height < 400mm, length + height < 480mm
    Film typecenter-folded polyolefin (POF) film
    Max film size530mm (width) x 280mm(outer diameter)
    Oven size1200(L) x 450(W) x 220(H) mm
    Shrink tunnel conveyor speedvariable, max. 40 m/min
    Shrink tunnel conveyorrotating silicon coated rods
    Power consumptionmax. 8.5 kW
    Working height780-850 mm
    Air pressure0.5MPa (5 bar)
    Sealing knifeTeflon coated alloyed knife with permanently heated bar
    Main control componentsOmron temperature controller, timer, relay and sensor
    Machine main materialpowder coated carbon steel
    Machine dimension1600 x 770 x 1450mm 1600 x 600 x 1260mm
    Machine weight450kgs

    Details of Full Automatic POF Film Shrink Wrap Machine



    Service terms:


    Payment term:


    1, 30% T/T in advance (for deposit),the balance should pay before machine loading

    2, 30% T/T in advance (for deposit), 70% do the Irrevocable L/C at sight

    3, 100% do the Irrevocable L/C at sight

    Delivery time &invoice:


    1) Within 30 days from the date of getting deposit of 30%.
    2) Loading port: Shanghai or Ningbo port, China.

    3) Destination port: Port at your option.


    Quality of Goods:


    1)100% brand new
    2)Origin: China.


    Packing and Marking:


    Packing: Export and sea-worthy standard wooden case


    Installation, Adjusting & Commissioning: We can offer you English manual and operation CD for install and operation. If you need us send engineer for install or adjusting, the buyer should take on all costs required during our technician's stay in the buyer's country, round airplane tickets, accommodation, foods.


    Guarantee terms:


    The seller guarantee the machines are new (or unused) and the guarantee period will be given 12 (twelve) months which starts from the date of the machine's arrival. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the round trip tickets and accommodation expenses for seller's technicians.


    Sample packing by Shrink film wrapping machine:


    Quality L Sealing Automatic Shrink Wrap Machine / Shrink Wrapping Machinery 150 Mm for sale
