JBZ-Bowl Ultrasonic heater Paper Bowl machine 35-45 pcs/min, Make both Single PE and Double PE Paper Bowl( For Hot and cold Drink), Bowl body welding by Ultrasonic

Technical Specification:

New Mingyuan design JBZ-Bowl VS. Normal machine design

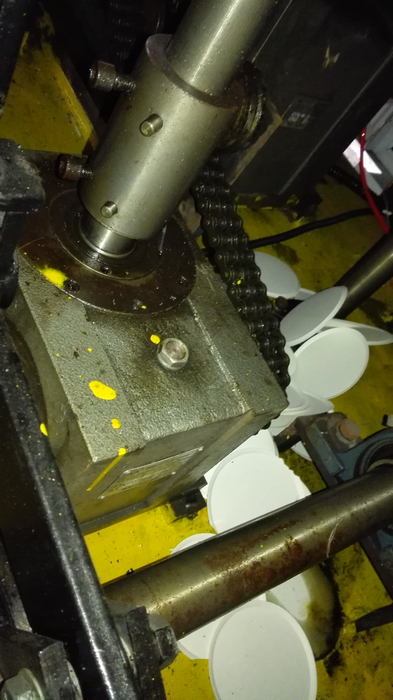

• We using Two Pieces Divided box one is 150 type, In Bottom Paper feeding part one more 80 type Gear box which has two years warranty.

1. Other company use one piece100 type divided box Only.

150 type and 80 type two gear box is much stable than 100 type, is stronger.

100 TYPE GEAR BOX AFTER ONE YEAR WILL FACE GEAR WORM PROBLEM

And BEARING PROBLEMS WHICH WERE NOT TRACED IN OUR GEAR BOX

2. We add Cooling Blower beside of Mould, Normal machine design only nothing. New design cooling the Mould in case mould too hot the paper cup paste in the mould.

3. We Use Big and Thickness bearing in machine that is easy for machine target higher speed will not broken, Normal Machine bearing is weak if machine running long time or target high speed very easy broken.

4. New machine design use Double Belt connect Reducer and Main motor, Normal machine design only single Belt, Double Belt for keep machine stable running also less broken.

5. The Paper Fan collection far away from the mould part, It will two time feeding paper fan which can sure paper fan feeding will not jam problem.

6. New Design we are adopt Three Cam inner of machine which for control the paper fan sealing more stable.

7. JBZ-Bowl Model machine improved the knurling Device

8. New design Bowl Machine For the AC drive we use Delta brand which made in Taiwan, We provide two years warranty for the AC drive.

          MINGYUAN was established in 2009, is a professional design, development and production of paper cup machine, paper straw machine, paper hamburger box forming machine, paper tray machine, plastic lid machine, paper cake tray machine all kinds of containers and packaging complete set of equipment.

         We are located in "China Packaging Machinery City"--Rui'an City, and all our products meet international quality standards and have obtained CE certificates. Our well-equipped facilities and excellent quality control throughout all stages of production allow us to guarantee complete customer satisfaction.

         Ruian Mingyuan Machinery Co., Ltd. was established in 2009. It is a company that integrates machinery development, production, sales and service for packaging equipment and complete sets of paper containers.

     In order to meet customers' export services from raw materials to finished products, we founded Ruian Mingyuan Paper Products Factory in 2014 and Wenzhou Mingyuan Import & Export Co., Ltd in 2022. We are mainly engaged in the supply of raw materials and finished paper products, foreign trade import and export business.

     Adhering to the corporate tenet of "quality, service and price", the company currently has more than 10 product lines, with products exported to 67 countries. High-efficiency production of high-quality finished products help customers to win the competition of market.

    Refine the performance of the equipment according to customer needs and provide more complete and timely after-sales ervice. Bringing more professional and high performance machines and equipment to customers.

    With the concept of "altruism", we aim to build a "different" company with a "human touch", which will ultimately lead to the common prosperity of our employees and customers.

Office Of Mingyuan Machinery

Employee of Mingyuan Machinery

Factory Building of Mingyuan Machinery

Workshop of Mingyuan Machinery

Machine Ready for Loading
