Eco Friendly Paper Cups Making Machines / High Power Paper Cup Shaper

    Buy cheap Eco Friendly Paper Cups Making Machines / High Power Paper Cup Shaper from wholesalers

    Buy cheap Eco Friendly Paper Cups Making Machines / High Power Paper Cup Shaper from wholesalers
    • Buy cheap Eco Friendly Paper Cups Making Machines / High Power Paper Cup Shaper from wholesalers

    Eco Friendly Paper Cups Making Machines / High Power Paper Cup Shaper

    Ask Lasest Price
    Brand Name : MINGYUAN
    Model Number : JBZ-OCM12
    Certification : CE/ SGS
    Price : negotiation
    Payment Terms : T/T, LC or western Union
    Supply Ability : 50 sets per month
    Delivery Time : 35-40working days after received your payment
    • Product Details
    • Company Profile

    Eco Friendly Paper Cups Making Machines / High Power Paper Cup Shaper

    Eco Friendly Paper Cups Making Machines / High Power Paper Cup Shaper


    Paper Cups Making Machines Description:


    high speed paper cup forming machine comes with single ,open intermittent indexing cam mechanism and full gear system ,longitudinal axis structures.The machine comes with PLC control system,sensorfailure detecting,and can stop working automatically if the machine has any problem,it can greatly improve operation safety and reducing labor cost.The machine can finish the whole process including paper feeding,side sealing,cup bottom punching & feeding,heating,knurling,cup-top curling,cup stacker.It is the best choice for making paper cups.


    Paper Cups Making Machines Technical Specification:


    ModelEco Friendly Paper Cups Making Machines / High Power Paper Cup Shaper
    Paper Cup Size:2 ~16 OZ
    Rated Speed:75-85pcs/min
    Raw Material:Only one-side PE coated paper ( Popular for Hot drink cups )One or Two side PE coated Paper
    (Popular for Hot and Cold drink Cups)
    Suitable paper weight:140~250gsm140-350gsm
    Power Source:50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power
    requirement.
    Total Power:4 KW6KW
    Total Weight:GW/NW: 1800KGS/1700KGS
    Pack Size (L*W*H)2100*970*1700mm(Machine Packing Size), 1250*860*1860MM(Counting Machine Packing Size)
    Working Air Source:
    No need provide Air
    Air pressure:0.4Mpa;
    Air Out-put:0.6m³/minute
    Need to buy Air Compressor(by user)
    Cup Side Welding:Copper HeaterUltrasonic heater
    Cup Bottom Heating:Heater Knurling

    1side PE paper by heater knurling;

    2side PE paper by cool device (circle

    water) knurling

    Cup Bottom Knurling:Heater Knurling (if use single PE coated paper)
    OEM ( Show Client Company Name in Machine Panel ) is welcome in our factory

    Main improved:


    1. New design : Add Pic showed switch which is Auto control sucking down paper fan or not . No need to push up the paper fan stocker when no need paper fan run

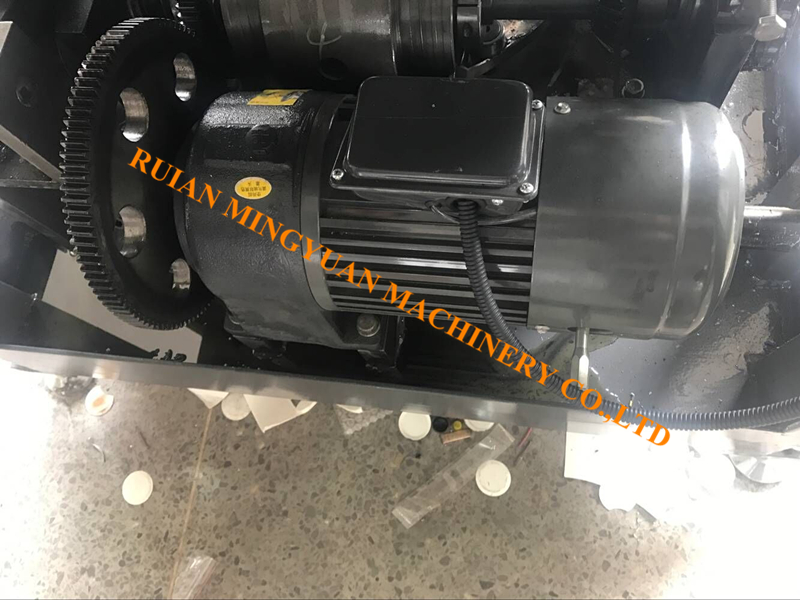

    2. Machine With Reducer Motor which Keep sure Machine running Stable in high Speed ( Normal Machine the Motor and reducer is Separate connected by belt each broken if run high Speed)


    New Design Normal design
